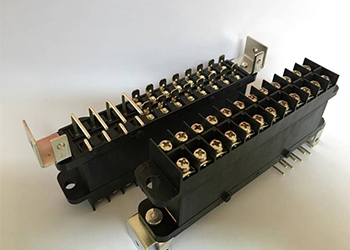

Auto Shunt

At Pinaka Interconnect Solutions Pvt. Ltd., we take pride in being a leading high-quality auto shunt connector manufacturer. With a strong commitment to innovation, reliability, and customer satisfaction, we have established ourselves as a trusted partner in the automotive industry.

Features

  • Quick and easy alternative to commonly used CT shorting blocks.
  • Innovative design allows for various combinations of power and signal contacts.
  • Selective load up to 12 CT contacts. Accepts 2.5 mm2 and 4 mm2 wire.

Technical Characteristics

Electrical Characteristics:

  • Contact Current Rating : 25 A continuous.
  • Initial Contact Resistance : 0.004Ω max.
  • Insulation Resistance : 5GΩ
  • Voltage Proof : 2000 V R.M.S. min.
  • Working Voltage : 250 V AC

Material and Finishes

  • Insulator : Glass filled Nylon 66, UL 94V-0.
  • Colour : Black.
  • Contacts : Copper Alloy, Silver plated.
  • Spring Band : Beryllium Copper, Silver Plated

Mechanical Characteristics:

  • Polarization & Blind Mate : Design of Connector’s body provides Polarization and blind mating feature
  • Mechanical Operation : 100 couplings minimum.
  • Working Temperature : -55 0C to 105 0C.
